P/N
CA-1Z1-00M1WN-00Series
The TowerCASE TYPE
Mid TowerDimension (H x W x D)
550 x 420 x 286.4 mm
(21.65 x 16.54 x 11.28 inch)NET WEIGHT
9.70 kg / 21.39 lbs.PANEL
3mm Tempered Glass x 3Color
BlackMATERIAL
SPCCCOOLING SYSTEM
Top(exhaust):
140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 2
Drive Bays
1 x 3.5”, 2 x 2.5” or 3 x 2.5”EXPANSION SLOTS
7MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

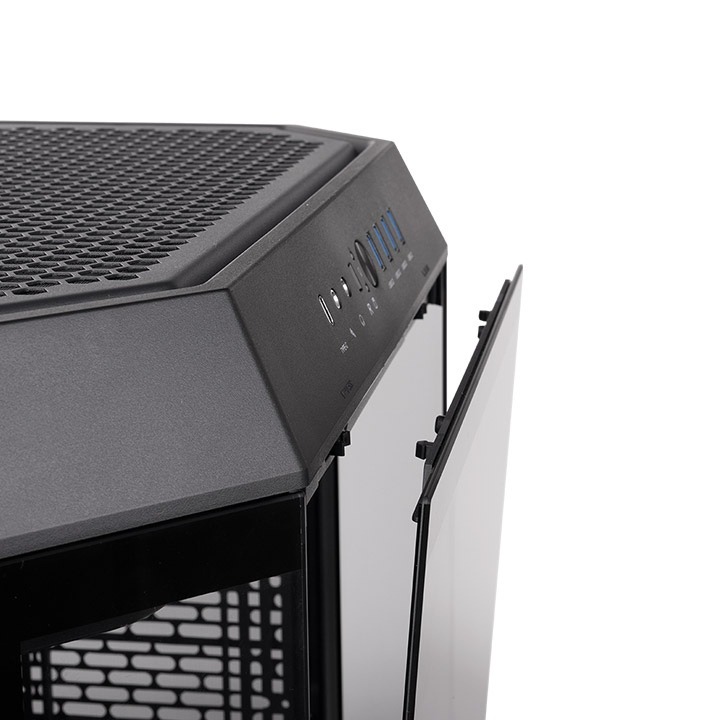

I/O Port
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Top:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
Left:
3 x 120mm, 2 x 120mm, 1 x 120mm
Rear:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Power Cover:
1 x 120mm, 1 x 140mm
Bottom:
1 x 120mm, 1 x 140mmRADIATOR SUPPORT
Right Side(AIO):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
Left Side(AIO):
1 x 360mm, 1 x 240mm, 1 x 120mm
CLEARANCE
CPU cooler height limitation:
210mm
VGA length limitation:
280mm(With power cover)
400mm(Without power cover)
PSU length limitation:
220mm
